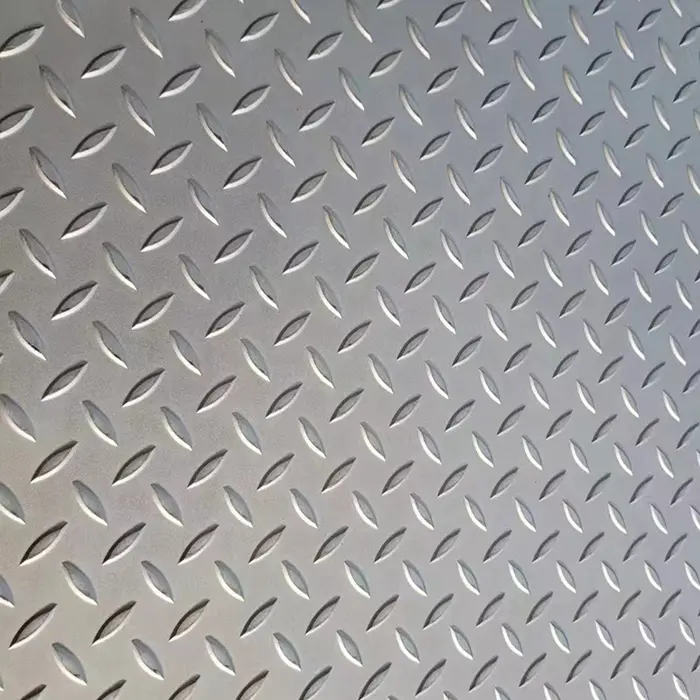

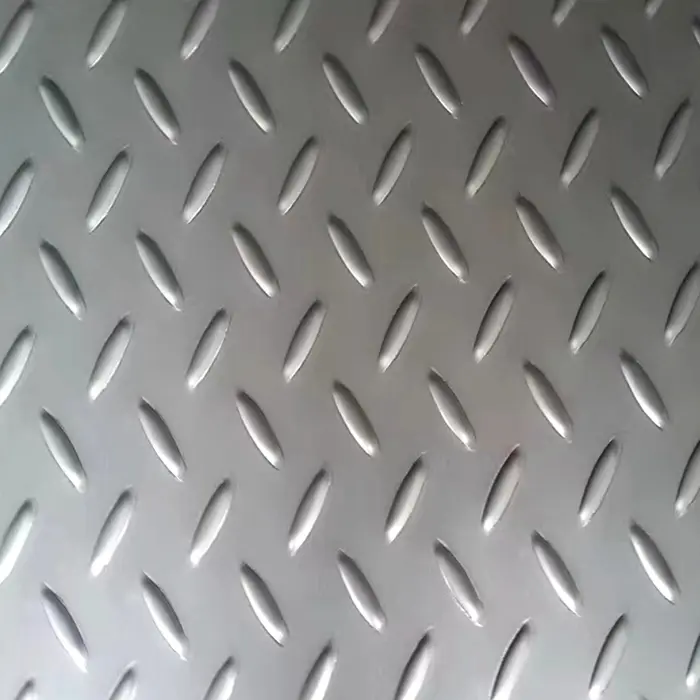

Aluminum Diamond Plate: The Quiet Hero of Safer Floors
If you manage a busy warehouse, a ferry ramp, or an outdoor stair that ices over before sunrise, you already know the humble anti skid plate is the difference between smooth operations and incident reports. The product name is a mouthful—Aluminum Diamond Plate Checkered Plate Anti Skid Plate Supplier—but on site it’s just “diamond plate,” and it earns its keep every single shift.
What’s trending (and why it matters)
Three quick notes from recent field chats and RFQs: lighter alloys to reduce dead load (especially for mezzanines), higher traction in wet/oily conditions, and faster lead times for retrofit projects. Actually, the newest demand is for pattern height customization—teams want just enough bite without tearing up soft-soled shoes.
Core Specifications (typical, real-world use may vary)
| Material | Aluminum 3003-H14 / 5052-H32 (ASTM B209) |
| Plate Thickness | ≈ 1.5–6.0 mm (common); thicker on request |
| Pattern | Diamond/checkered; raised height ≈ 0.6–1.2 mm adjustable |
| Finish | Mill, brushed, or anodized (≈ 8–15 µm) |
| Widths x Lengths | Up to ≈ 1500 mm x 6000 mm (stock sizes vary) |
| Traction (wet) | ASTM E303 BPN ≈ 35–45, depending on finish/pattern |
| MOQ / Supply | Min 100 pcs; ≈ 10,000 pcs/month capacity |
| FOB Reference | US $0.5–9,999 per piece (spec-driven) |
From Coil to Floor: how these plates are made
Material selection (3003 for formability, 5052 for corrosion resistance) → hot/cold rolling → checkering/embossing with calibrated rolls → optional heat treatment → surface finish (anodize or brush) → CNC cut and deburr → QC. Testing typically follows ASTM B209 for dimensional/tensile checks, ASTM B117 salt spray for coated parts, and slip testing per ASTM E303 or comparable regional methods. Service life? In dry indoor stairs, I’ve seen plates last 15+ years; coastal ramps may need recoating far sooner.
Where a strong anti skid plate shines

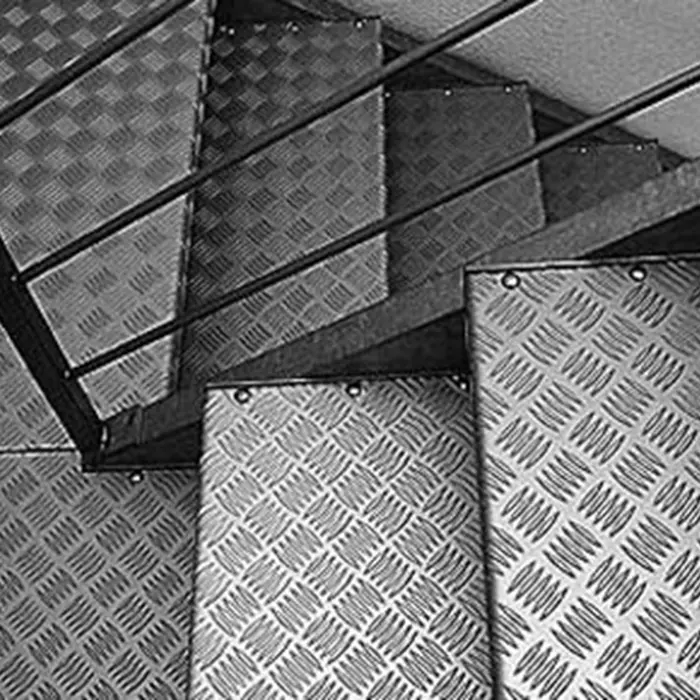

- Stairs and landings in factories and stadiums- Vehicle steps, truck beds, service vans (weight matters here)
- Marine ramps and docks (go 5052 + anodize, trust me)
- Food plants and cold rooms (cleanability + grip)
Advantages: high traction, relatively light, easy to cut/drill, corrosion resistant, and surprisingly good ROI when you factor in fewer slip incidents. Many customers say the maintenance savings were the unexpected win.
Vendor snapshot (field-notes, not gospel)
| Vendor | Location | Lead Time | Customization | Certs |
|---|---|---|---|---|
| Anping Supplier (Origin: No.12, Jingsan Rd, Hengshui, Hebei) | China | ≈ 15–25 days | Pattern height, alloy, anodize color | ISO 9001 (typical) |
| Regional Stockist | Local | Fast (stock-based) | Limited sizes | Vary |
| Generic Importer | Mixed | ≈ 30–40 days | Depends on batch | Ask for mill certs |
Customization that actually helps
- Pattern height tuned to footwear and cleaning SOPs. - Alloy swap (3003 for bendy stair nosings, 5052 for briny air). - Anodize thickness/color for durability and visibility. - Prefab countersunk holes so your crew isn’t drilling in the rain.
Quick case notes
1) Coastal warehouse: 5052-H32, 3 mm, anodized 12 µm; wet BPN averaged 42 (ASTM E303). Slip incidents dropped to zero over two winters, according to the safety manager—small sample, but telling.
2) City stadium stairs: 3003-H14, 2 mm, brushed finish; easy to cut on site. Facilities team said install time fell by “about a third,” mainly due to lighter weight versus steel.
Quality, tests, and paperwork
- Mill certs per ASTM B209; hardness/UTS checked per alloy temper. - Salt spray (ASTM B117) for coated parts; aim ≥ 240–480 h neutral spray in spec tests. - Slip resistance via ASTM E303 or regional equivalents; target wet BPN ≥ 35 for general walkways. - ISO 9001 QMS at plant level; RoHS upon request. To be honest, always ask for the actual test reports—good vendors won’t blink.
Bottom line: a properly specified anti skid plate trades a tiny bit of upfront spec work for years of safer footing and fewer headaches. And that’s worth it.
Authoritative citations
- ASTM B209 – Aluminum and Aluminum-Alloy Sheet and Plate: https://www.astm.org/b0209_b0209m-14.html
- ASTM B117 – Standard Practice for Operating Salt Spray (Fog) Apparatus: https://www.astm.org/b0117-19.html
- ASTM E303 – Measuring Surface Frictional Properties Using the British Pendulum Tester: https://www.astm.org/e0303-22.html
- ISO 9001 – Quality management systems requirements: https://www.iso.org/standard/62085.html
