Razor Wire Mesh Fencing: What Pros Are Buying in 2025

If you’re comparing perimeter solutions, gi mesh fencing built from hot-dipped galvanized razor wire is still the go-to for serious security. I’ve walked enough sites—prisons, logistics parks, even a few prickly villa installs—to say this with confidence: when budgets are real and threats aren’t theoretical, concertina BTO profiles rule the fence line.

Product snapshot

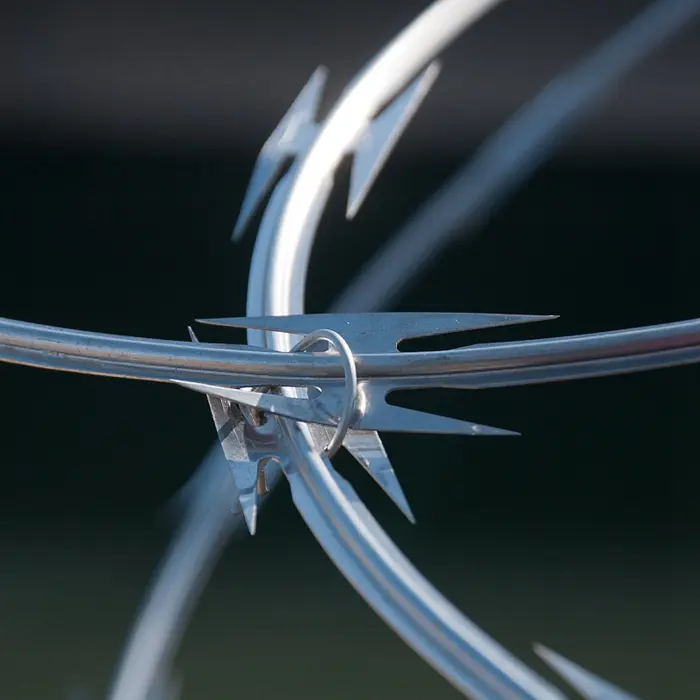

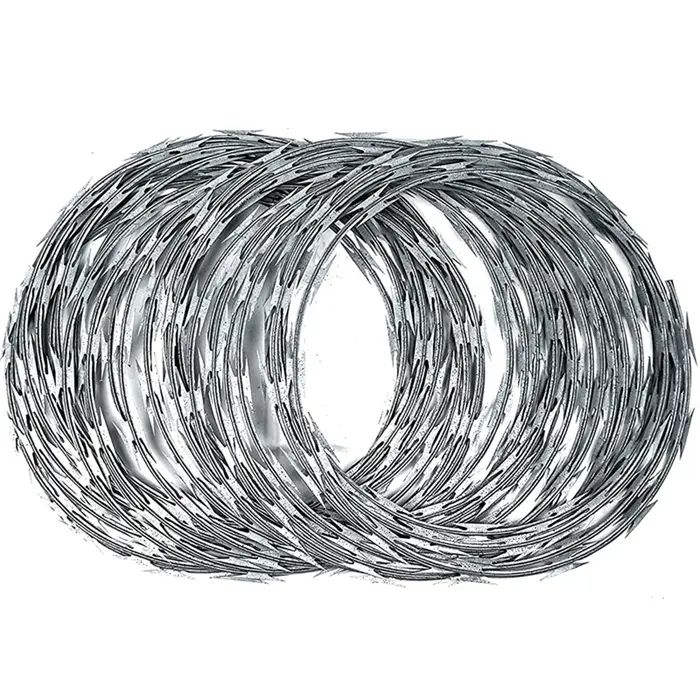

Product name: Hot Dipped Galvanized Razor Wire BTO22/BTO10/BTO12 Concertina Razor Wire Mesh Fencing. Origin: No.12, Jingsan Road, Anping County, Hengshui City, Hebei Province, China—the world’s wire-mesh hub, to be honest. FOB price: US $0.5–9,999 per piece (yes, that broad—depends on blade profile, coating, coil diameter). MOQ ≈ 100 pcs; supply ≈ 10,000 pcs/month. Many customers say the cost-per-meter beats welded panels when you factor in deterrence.

Typical specifications (real-world use may vary)

Blade types	BTO-10 / BTO-12 / BTO-22 (security upgrade as number increases)
Core wire	Low-carbon steel, Ø ≈ 2.5 mm; tensile 700–1,000 MPa (EN 10218 range)
Zinc coating	Hot-dip galvanized, ≥ 275 g/m² (≈ 60–100 μm), ISO 1461 / ASTM A123
Coil diameter	450 / 610 / 730 / 980 mm options
Clips & loops	Clip-connected, 33 or 55 loops/coil; length ≈ 8–15 m/coil
Standards	ASTM A641/A641M, ISO 1461, EN 10223-7, ISO 9001 factory QMS

Process flow (how it’s actually made)

Materials: Q195 low-carbon steel core wire + galvanized steel strip. Methods: blade punching and cold crimping onto the core; concertina forming; hot-dip galvanizing for full coverage. Testing: coating mass by ASTM A90; adhesion bend tests; tensile and elongation; salt spray per ISO 9227 (≥ 240 h baseline for coastal-facing orders). Service life: ≈ 15–25 years inland; ≈ 8–15 years coastal C4–C5 without extra topcoat; add polymer topcoat and you extend it, frankly, a lot.

Where it’s used (and why)

Prisons, military bases, utilities perimeters, airports
Factories, warehouses, data centers (rooftop lines are common)
Government sites, rail yards, and—surprisingly—high-end villas

Advantages: massive visual deterrence, fast install over chain-link or wall crowns, low material-to-coverage ratio. Downsides? It’s not decorative, and you need trained installers. Still, gi mesh fencing is the “no excuses” option.

Field data (recent lots)

Coating mass: 310–380 g/m² avg (A90 test, n=6 coils)
Salt spray (ISO 9227): 480 h to red rust on cut edges; no base metal rust on body
Pull test: core wire break at 890–940 MPa; blade bond intact in 97% samples

Vendor comparison (shortlist smartly)

Vendor type	MOQ	Lead time	Customization	Certs	Indicative price
Anping OEM factory (origin listed above)	≈100 pcs	10–18 days	Blade profile, coil dia, coating mass	ISO 9001; test reports on request	$0.5–$9,999/pc (spec-driven)
Importer/distributor	Low (stock)	2–5 days (ex-stock)	Limited	Varies	10–25% premium
Local fabricator	Project-based	Varies	Moderate	Shop-level	Mid-range

Case notes and feedback

Middle East prison upgrade, BTO-22, 730 mm coils: breach attempts dropped to zero in 60 days—guards said “deterrence is immediate.” A Southeast Asia logistics park added gi mesh fencing atop chain-link; theft incidents fell 82% year-over-year. Residential villa belt in coastal city chose BTO-12 with polymer topcoat; owner admits it’s not pretty, but “nobody tries the wall anymore.”

Buying checklist

Ask for coating mass (g/m²) and ISO 9227 hours, not just “galvanized.”
Confirm blade profile (BTO-22 for high-risk) and coil diameter vs. post spacing.
Insist on batch test reports and ISO 9001 certificate copies.
Plan trained install—concertina deserves respect, I guess that’s obvious.

In the end, gi mesh fencing is about credible prevention. If the brief is “keep them out,” this is the blunt instrument that works.
