Hot-dip Galvanized Platform Grating: Factory Notes, Field Wins, and What Buyers Really Ask
If you spend enough time on industrial sites, you start judging walkways. I do. The first thing I look for is the quality of steel grating underfoot—how it’s made, how it drains, and whether it’ll bite in the rain. This product category has quietly become the default for platforms, treads, vents, and bridge sidewalks because it’s tough, open-area efficient, and—when properly galvanized—nearly boring in how reliably it lasts. And that’s a compliment.
Product snapshot (quick but real)

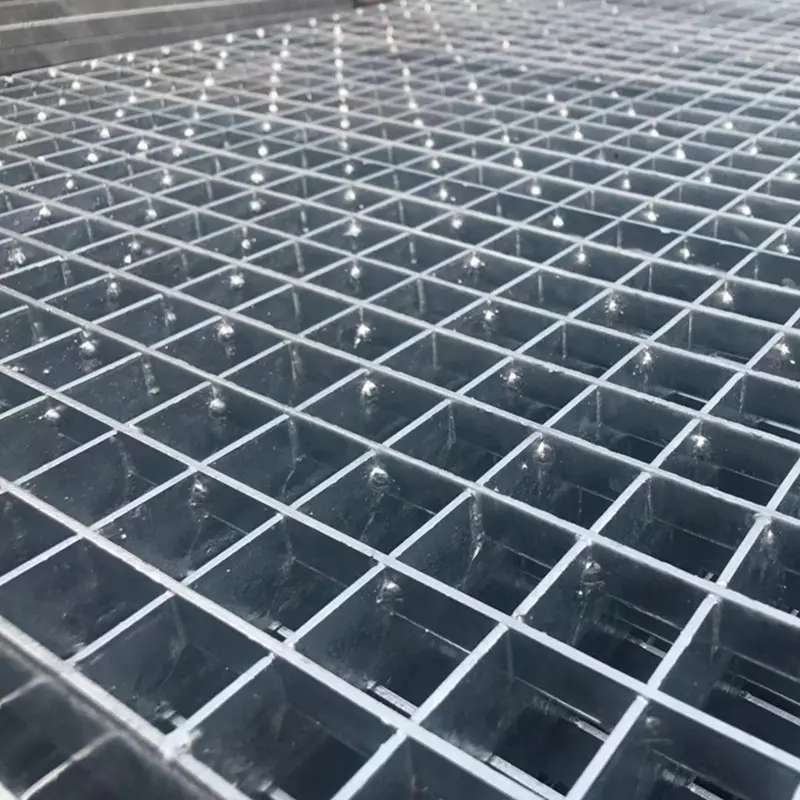

Product: Manufacturers sell hot-dip galvanized platform steel grating from Anping (No.12, Jingsan Road, Hengshui, Hebei, China). FOB ≈ US $0.5–9,999 / piece, MOQ 100 pcs, supply ≈10,000 pcs/month. Sensible for petrochem, water treatment, power plants, ports, bridges, and feed warehouses. Many buyers in ports tell me the serrated profile is a day-saver in fog.
| Material | Low-carbon steel (Q235/A36 class), optional 304/316 for corrosives |
| Bearing bar | Thickness ≈ 3–6 mm; height ≈ 25–50 mm; pitch 30/40 mm (other on request) |
| Cross bar | Twisted square or round; pitch ≈ 50/100 mm |
| Surface | Plain or serrated (anti-slip). Hot-dip galvanized per ASTM A123 / ISO 1461 |
| Typical size | Panel ≈ 1×6 m max; custom cut, banded, nosed treads available |
| Design load | Per NAAMM MBG 531 tables; common deflection target L/200 (real-world use may vary) |
How it’s made (shop-floor view)
Process flow: steel procurement → bearing/cross-bar cutting → resistance welding or pressure locking → edge banding → straightening → surface prep (degrease, pickling, flux) → hot-dip zinc bath → quench/inspection → packing. QC checks include weld integrity, dimensional tolerance, and coating thickness. In practice, galvanized coating average often clocks around 90–110 µm under ASTM A123, or ≥85 µm mean per ISO 1461 for >6 mm base steel; verify lot reports. Service life? Roughly 20–50+ years depending on ISO 9223 corrosivity category. Urban seaside eats zinc faster; inland sites can go decades.
Why teams pick it
- Drainage and debris-shedding, lighter than plate flooring at comparable spans.
- Hot-dip protection resists abrasion and underfilm creep better than paint.
- Modular: cut-to-fit, clip-fastened, and easy to replace during shutdowns.
Customization options
Choose serrated vs plain, banding, toe plates, checker-nose treads, kick plates, and powder topcoat over zinc for color coding. For food or chlorine-heavy lines, consider stainless steel grating with electrolytic polish.
Vendor snapshot (what to compare)
| Vendor | MOQ | Lead time | Galv. standard | Certs |
|---|---|---|---|---|
| Anping Manufacturer (this product) | 100 pcs | ≈ 10–25 days | ASTM A123 / ISO 1461 | ISO 9001; mill test reports |
| Vendor A (regional) | 50 pcs | ≈ 3–4 weeks | ISO 1461 | ISO 9001 (requested) |
| Vendor B (OEM) | 200 pcs | ≈ 20–35 days | ASTM A123 | CE doc (project-based) |
Standards, testing, and safety notes
- Coating: ASTM A123/A123M or ISO 1461 zinc thickness verification (magnetic gauge).
- Design/loading: NAAMM MBG 531 bar grating manual and tables.
- Walking-working surfaces: OSHA 29 CFR 1910 Subpart D compliance for platforms and stairs.
- Corrosion category: ISO 9223 to estimate service life by environment (C2–C5).
Field feedback has been consistent: serrated steel grating helps on oily decks; specify toe plates and hold-down clips to stop “rattle” on long spans.
Mini case notes
- Wastewater plant: swapped rusted checker plate for galvanized steel grating; maintenance crew reported zero standing water and faster hose-downs.
- Port ramp: serrated panels cut slip incidents (per safety logs) during winter fog—supervisors asked for the same spec on a new berth.
- Bottling line mezzanine: added kick plates and yellow topcoat over zinc for traffic zoning; no coating undercut after caustic washdowns (12 months in).
Note: Always confirm local code requirements and request coating and weld QA records with shipment.
Citations
- ASTM A123/A123M – Standard Specification for Zinc (Hot-Dip Galvanized) Coatings on Iron and Steel Products: https://www.astm.org/a0123_a0123m-17.html
- ISO 1461 – Hot dip galvanized coatings on fabricated iron and steel articles: https://www.iso.org/standard/68031.html
- NAAMM MBG 531 – Metal Bar Grating Manual: https://www.naamm.org
- OSHA 29 CFR 1910 Subpart D – Walking-Working Surfaces: https://www.osha.gov/laws-regs/regulations/standardnumber/1910/1910SubpartD
- ISO 9223 – Corrosion of metals and alloys—Corrosivity of atmospheres: https://www.iso.org/standard/66642.html
