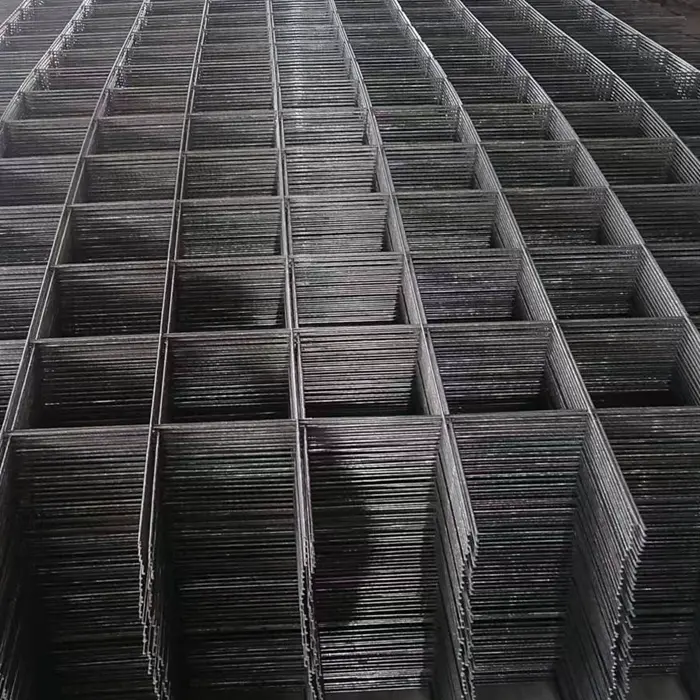

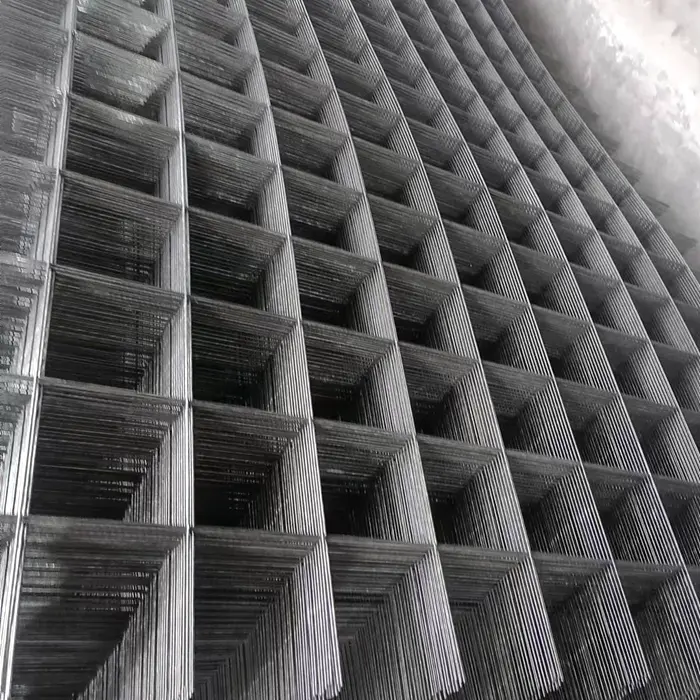

The Imperative Role of Reinforcement Wire in Modern Infrastructure
In contemporary civil engineering, the integrity and longevity of structures, particularly critical infrastructure like bridges, heavily rely on advanced material science and robust construction methodologies. A cornerstone of this robustness is high-performance reinforcement wire, specifically engineered for demanding applications such as highway bridge construction. This technical overview delves into the critical aspects of highway bridge cold-rolled ribbed reinforcement mesh, exploring its manufacturing, applications, advantages, and market dynamics.
Industry Trends and Material Evolution in Bridge Construction
The global infrastructure landscape is undergoing significant transformation, driven by increasing demands for durability, sustainability, and accelerated construction timelines. This has spurred innovations in materials science, particularly in the realm of steel reinforcement. Modern trends in bridge construction emphasize the use of high-strength, corrosion-resistant, and easily deployable materials. For instance, the transition from conventional rebar to prefabricated welded wire mesh, especially cold-rolled ribbed varieties, offers substantial benefits in terms of construction efficiency and structural performance. This shift is crucial for projects involving large-scale concrete structures, including support frameworks for barrier bridge systems, advanced bridge grating installations, and robust bridge guardrail foundations.
Furthermore, the drive for sustainable engineering practices has led to a focus on materials with extended service life and reduced environmental footprint. Cold-rolled ribbed reinforcement wire contributes to this by providing superior crack control and enhanced bond strength with concrete, thereby prolonging the operational lifespan of bridges and reducing maintenance frequency. Market data indicates a steady increase in the adoption of welded wire mesh, projected to grow at a CAGR of 4.5% from 2023 to 2030, driven by escalating infrastructure investments globally.
Manufacturing Process: Highway Bridge Cold-Rolled Ribbed Reinforcement Mesh
The production of highway bridge cold-rolled ribbed reinforcement wire mesh is a meticulously controlled process, adhering to stringent quality standards to ensure optimal structural performance. This advanced manufacturing sequence is designed to imbue the wire with superior tensile strength, ductility, and concrete bond characteristics.
Process Flow Diagram:
- 1. Raw Material Sourcing: High-quality hot-rolled wire rod (typically low-carbon steel) meeting ASTM A82/A496 or ISO 6935 standards. Material composition is strictly analyzed for carbon content, manganese, silicon, and other alloying elements to ensure desired mechanical properties.
- 2. Acid Pickling & Washing: The wire rod undergoes acid pickling to remove scale and impurities, followed by thorough washing and lubrication to prepare the surface for subsequent drawing. This prevents die wear and ensures a smooth, clean surface.
- 3. Cold Drawing & Ribbing: The cleaned wire rod is pulled through a series of dies at ambient temperature, progressively reducing its diameter and increasing its tensile strength. Simultaneously, specialized rolling dies impart the characteristic transverse and longitudinal ribs (deformations) onto the wire surface. This cold-working process enhances both strength and the bond with concrete.
- 4. Automated Welding: The ribbed wires are then fed into an automated resistance welding machine. Longitudinal and transverse wires are precisely positioned at specified spacings and resistance-welded at their intersections. This creates a strong, monolithic mesh panel. CNC machining ensures precise spacing and panel dimensions.
- 5. Cutting & Finishing: The continuous mesh is cut into desired panel sizes according to project specifications. Edge trimming and deburring may be performed for safety and easier handling.
- 6. Quality Control & Testing: Each batch undergoes rigorous testing to comply with international standards such as ISO 9001, ASTM A1064/A1064M (formerly A185/A497), and BS 4483. Tests include tensile strength, yield strength, elongation, weld shear strength, and dimensional accuracy (wire diameter, mesh spacing, panel dimensions).
- 7. Packaging & Dispatch: Finished mesh panels are stacked, bundled, and secured for transport, often with protective coverings to prevent damage.
This meticulous process ensures that the reinforcement mesh exhibits a typical service life exceeding 75 years in moderate environments, and 50 years even in harsh, corrosive conditions, when properly embedded in concrete. Target industries benefiting from this technology include civil engineering, heavy construction, and infrastructure development, particularly for applications in bridge decks, abutments, and precast concrete elements. Its advantages include significantly enhanced concrete durability and structural resilience, crucial for longevity in sectors like transportation infrastructure.
Technical Specifications and Performance Parameters
Understanding the technical specifications of highway bridge cold-rolled ribbed reinforcement wire mesh is paramount for engineers and project managers. The following table outlines typical parameters adhering to industry benchmarks, crucial for structural calculations and material procurement.
Typical Product Specification Table: Highway Bridge Reinforcement Mesh
| Parameter | Specification Range (Cold-Rolled Ribbed) | Relevant Standard |
|---|---|---|
| Wire Diameter (mm) | 4.0 - 12.0 mm | ASTM A1064/A1064M, BS 4483 |
| Tensile Strength (MPa) | ≥ 550 MPa | ASTM A1064/A1064M, ISO 6935 |
| Yield Strength (MPa) | ≥ 500 MPa | ASTM A1064/A1064M, ISO 6935 |
| Elongation at Break (%) | ≥ 8% | ASTM A1064/A1064M, ISO 6935 |
| Weld Shear Strength (kN) | Typically 70-80% of wire tensile strength | ASTM A1064/A1064M |
| Mesh Spacing (Longitudinal/Transverse) | 50x50 mm to 300x300 mm (customizable) | Project Specific |
| Panel Dimensions (Length x Width) | Up to 6m x 2.4m (standard), custom lengths available | Project Specific |
| Material Grade | Usually B500A, B500B, B500C (EU) or equivalent | EN 10080, BS 4449 |
These parameters highlight the high-strength characteristics of cold-rolled ribbed wire. The ribbed profile significantly increases the mechanical bond with concrete, distributing stresses more effectively and reducing crack propagation. This leads to structures with enhanced fatigue resistance and overall structural integrity.
Application Scenarios for Reinforcement Wire
The versatility and superior performance of cold-rolled ribbed reinforcement wire mesh make it indispensable across various critical infrastructure applications, particularly within the domain of bridge construction.
- Bridge Decks and Slabs: The primary application involves reinforcing concrete bridge decks, providing the necessary tensile strength to withstand vehicular loads, thermal expansion, and seismic forces. The prefabricated nature of the mesh significantly reduces on-site labor and accelerates project timelines.
- Bridge Abutments and Piers: Used in the foundations and vertical support structures of bridges to enhance compressive strength and resist shear forces, ensuring the stability of the entire bridge system.
- Precast Concrete Elements: Integral for prefabricating bridge segments, culverts, and other structural components off-site, which are then transported and assembled, thereby improving quality control and efficiency.
- Barrier Bridge Systems: Provides essential internal reinforcement for concrete barriers and median walls on bridges, enhancing their impact resistance and protecting vehicles and pedestrians.
- Bridge Grating Support Structures: While gratings themselves are often metal, the underlying concrete support systems for heavy-duty bridge grating benefit from this mesh for added strength and load distribution.
- Bridge Guardrail Foundations: Used in the concrete bases of guardrails to ensure their anchorage is robust enough to withstand significant impact forces.
- Tunnel Linings and Retaining Walls: Beyond bridges, the mesh is critical in other heavy civil applications requiring high-strength concrete reinforcement to manage geological pressures and structural loads.
Technical Advantages and Performance Enhancements
The adoption of cold-rolled ribbed reinforcement wire mesh offers several distinct technical advantages over traditional loose rebar systems:
- Superior Bond Strength: The engineered ribbed profile significantly increases the contact area and mechanical interlock with concrete, translating to a 30-50% improvement in bond strength compared to plain wires. This minimizes slippage and enhances load transfer.
- Enhanced Crack Control: The high yield strength and uniform distribution of smaller diameter wires provide better crack dispersion and reduced crack widths, preventing the ingress of moisture and corrosive agents, thereby prolonging the structure's life.
- Accelerated Construction: Prefabricated mesh panels reduce on-site cutting, bending, and tying of individual rebars. This can lead to a 50-70% reduction in installation time for reinforcement, significantly cutting labor costs and project schedules.
- Reduced Material Waste: Factory-produced mesh minimizes scrap and off-cuts common with on-site rebar fabrication, contributing to a more sustainable construction process and cost efficiency.
- Improved Quality Assurance: Automated welding ensures precise spacing and strong connections, eliminating human error inherent in manual tying and ensuring consistent structural performance. This contributes to a higher quality concrete cover and reduced risk of concrete spalling.
- Corrosion Resistance: While the base material is steel, the dense concrete cover facilitated by precise mesh placement and improved crack control inherently boosts corrosion resistance. For highly corrosive environments, specialized coatings (e.g., epoxy) can be applied to the mesh to provide an additional layer of protection, extending service life in marine or chemical-exposed settings.
Vendor Comparison and Selection Criteria
Selecting the right vendor for highway bridge cold-rolled ribbed reinforcement wire mesh is a critical decision impacting project success, cost-efficiency, and structural longevity. Prospective buyers should evaluate vendors based on a comprehensive set of criteria beyond just unit price.
Key Vendor Comparison Metrics:
| Criterion | Description and Importance |
|---|---|
| Certifications & Standards Adherence | Verification of ISO 9001, ASTM A1064/A1064M, BS 4483, and other relevant national/international standards. Ensures product quality and compliance. |
| Manufacturing Capability | Assess production capacity, automation level, and ability to handle large-scale, complex projects with precision. |
| Customization Options | Ability to produce mesh with custom wire diameters, spacings, panel sizes, and coatings to meet specific project demands. |
| Logistics & Delivery | Reliability of supply chain, lead times, and ability to deliver to challenging project sites efficiently. On-time delivery is crucial for project scheduling. |
| Technical Support & Service | Availability of engineering support for design optimization, product selection, and post-delivery assistance. |
| Reputation & Project References | Track record in major infrastructure projects, client testimonials, and years of experience in the industry. |
| Cost-Effectiveness (Total Cost of Ownership) | Beyond initial purchase price, consider installation savings, reduced waste, and long-term durability benefits. |
Customized Solutions and Project Integration
Modern bridge projects often present unique engineering challenges requiring tailored reinforcement solutions. Leading manufacturers offer comprehensive customization capabilities for cold-rolled ribbed reinforcement wire mesh to precisely meet project-specific demands.
- Variable Wire Diameters: Production of mesh with different wire gauges in longitudinal and transverse directions to optimize load-bearing capacity and material usage.
- Optimized Mesh Spacing: Customization of grid dimensions to match stress distribution requirements, minimizing concrete volume and maximizing efficiency.
- Non-Standard Panel Sizes: Fabrication of oversized or irregularly shaped panels to reduce on-site cuts and laps, improving installation speed and reducing waste.
- Specialized Coatings: Application of epoxy-coated or galvanized finishes for projects in aggressive environments, such as coastal bridges or those exposed to de-icing salts.
- Design Collaboration: Engaging with client engineering teams to develop bespoke mesh designs that integrate seamlessly with BIM models and structural analysis.
These customized solutions ensure that every component contributes optimally to the structural integrity and economic viability of the project.
Application Case Study: Highway Bridge Deck Rehabilitation
Project: Major Interstate Bridge Deck Overlay, Midwestern USA
Challenge: An aging interstate bridge deck exhibited significant concrete deterioration and cracking due to heavy traffic loads, freeze-thaw cycles, and de-icing salt exposure over decades. The project required rapid rehabilitation to minimize traffic disruption while ensuring a new deck overlay with a projected service life of 75 years.
Solution: Engineers specified the use of epoxy-coated cold-rolled ribbed reinforcement wire mesh for the new concrete overlay. Customized mesh panels, pre-cut to match deck section dimensions, were fabricated off-site. The mesh featured 8mm diameter wires at 150mm x 150mm spacing, adhering to ASTM A1064/A1064M standards for galvanized and epoxy-coated welded wire reinforcement.
- Execution: The prefabricated mesh panels were delivered in sequenced batches, minimizing on-site storage. Installation involved simply laying the panels onto the prepared deck surface and securing them before concrete pouring. The uniform spacing and strong welds eliminated the need for extensive tying.
-
Results:
- Time Savings: Reinforcement installation time was reduced by approximately 60% compared to traditional rebar methods, contributing to an overall project completion 3 weeks ahead of schedule.
- Cost Efficiency: Reduced labor hours and minimal material waste resulted in a 15% saving on reinforcement-related costs.
- Enhanced Durability: The epoxy coating provides superior corrosion resistance, crucial for the long-term performance in an environment exposed to de-icing salts. The ribbed wire significantly improved bond strength, leading to a crack-resistant and robust deck.
- Structural Performance: Post-construction load testing demonstrated excellent load distribution and deflection characteristics, affirming the enhanced structural integrity.
Frequently Asked Questions (FAQ)
Q1: What are the primary advantages of cold-rolled ribbed reinforcement mesh over standard rebar?
A1: Key advantages include higher tensile and yield strength, superior bond with concrete due to the ribbed profile, significantly faster installation times (up to 70% reduction in labor), less material waste, and enhanced crack control in concrete structures.
Q2: How does the mesh contribute to the longevity of bridge structures?
A2: Its superior bond strength and optimized crack control reduce concrete permeability, preventing the ingress of water and corrosive chlorides. This protects the steel from corrosion, extending the service life of the bridge deck and other structural elements.
Q3: Can reinforcement wire mesh be customized for specific project requirements?
A3: Yes, leading manufacturers offer extensive customization options including variable wire diameters, specific mesh spacings, custom panel dimensions, and specialized coatings (e.g., epoxy, galvanized) to meet unique structural demands and environmental conditions.
Q4: What are the typical lead times for large orders of reinforcement mesh?
A4: For standard specifications and quantities, lead times typically range from 2 to 4 weeks. For large-scale or highly customized orders, lead times can extend to 6-8 weeks, depending on production queue and material availability. Expedited options may be available upon request.
Q5: What warranty and after-sales support are provided?
A5: We provide a comprehensive product warranty covering material defects and manufacturing faults, typically for 5-10 years, in line with industry standards. Our dedicated after-sales support team offers technical assistance, installation guidance, and responsive issue resolution to ensure seamless project execution and long-term satisfaction.
Conclusion: Advancing Infrastructure with High-Performance Reinforcement
The continuous evolution of cold-rolled ribbed reinforcement wire mesh represents a significant leap in civil engineering materials, offering unparalleled strength, durability, and efficiency for highway bridge construction. Its integration into modern infrastructure projects not only addresses immediate structural demands but also aligns with long-term goals of sustainability and resilience. By leveraging advanced manufacturing processes, adhering to rigorous international standards, and offering flexible customization, this technology empowers engineers and contractors to build safer, more durable, and cost-effective bridges that stand the test of time.
References
- American Society for Testing and Materials. (2018). ASTM A1064/A1064M: Standard Specification for Steel Wire Mesh, Deformed, for Concrete Reinforcement. West Conshohocken, PA: ASTM International.
- International Organization for Standardization. (2007). ISO 6935: Steel for the reinforcement of concrete – Ribbed bars. Geneva, Switzerland: ISO.
- British Standards Institution. (2005). BS 4483: Steel fabric for the reinforcement of concrete. London, UK: BSI.
- European Committee for Standardization. (2006). EN 10080: Steel for the reinforcement of concrete – Weldable reinforcing steel – General. Brussels, Belgium: CEN.
- Transportation Research Board. (2022). Innovations in Bridge Deck Construction and Rehabilitation. Washington, D.C.: The National Academies Press.
