Aluminum Diamond Plate Checkered Plate Anti Skid Plate Supplier

Aluminum Diamond Plate Checkered Plate Anti Skid Plate Supplier

Short Description:

Diamond plate is a product with raised patterns or textures on one side and smooth on the reverse side. Or it can also be called deck board or floor board. The diamond pattern on the metal plate can be changed, and the height of the raised area can also be changed, all of which can be adjusted according to the customer’s requirements.
The most common application of diamond-shaped boards is metal stairs. The protrusions on the surface of the diamond-shaped boards will increase the friction between people’s shoes and the board, which can provide greater traction and effectively reduce the chance of people slipping when walking on the stairs.

FOB Price: US $0.5 - 9,999 / Piece
Min.Order Quantity: 100 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month

Aluminum Diamond Plate Checkered Plate Anti Skid Plate Supplier

Product information

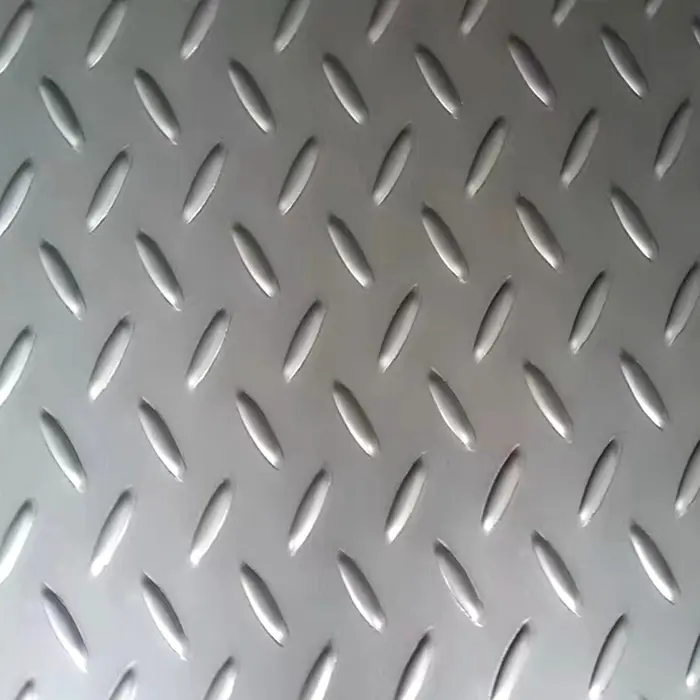

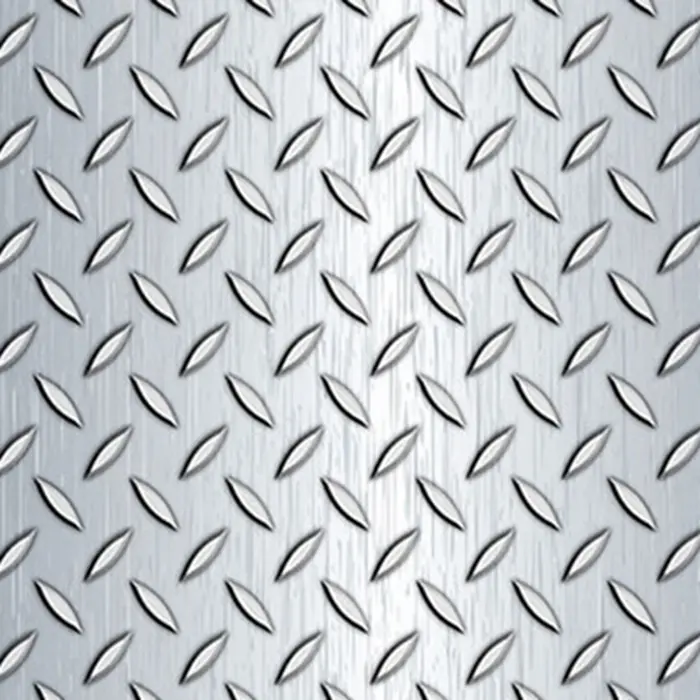

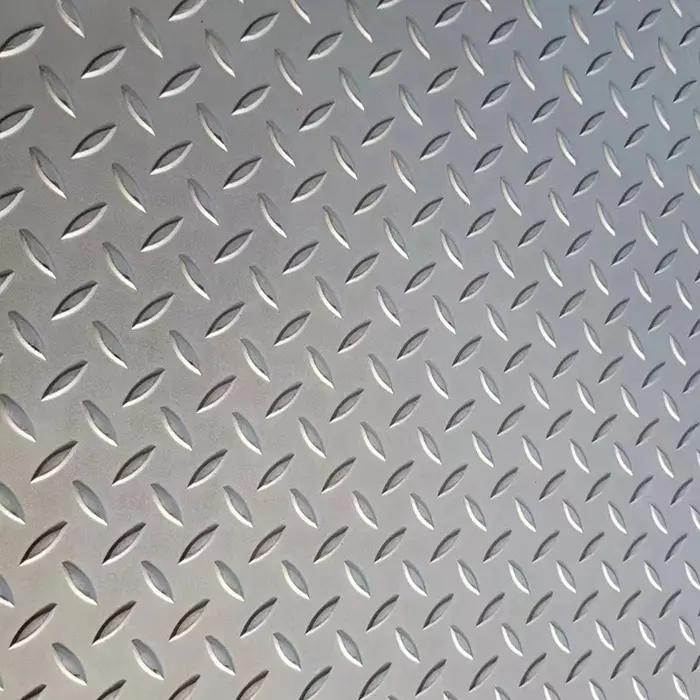

The steel plate with a pattern on the surface is called a checkered plate or diamond plate, and its pattern is a mixed shape of lenticular, rhombus, round bean, and oblate. The lenticular shape is the most common in the market.

Features

The checkered plate has many advantages such as beautiful appearance, anti-skid, enhanced performance, and steel saving.

It is widely used in transportation, construction, decoration, floor around equipment, machinery, shipbuilding and other fields.

Generally speaking, the user does not have high requirements on the mechanical properties and mechanical properties of the checkered plate, so the quality of the checkered plate is mainly manifested in the flowering rate of the pattern, the height of the pattern, and the height difference of the pattern.

The commonly used thicknesses on the market range from 2.0-8mm, and the common widths are 1250 and 1500mm.

Diamond Plate Theoretical Weight Table(mm)
Basic thickness	Basic thickness tolerance	Theoretical quality(kg/m²)
		Diamond	Lentils	Round bean
2.5	±0.3	21.6	21.3	21.1
3.O	±O.3	25.6	24.4	24.3
3.5	土0.3	29.5	28.4	28.3
4.O	±O.4	33.4	32.4	32.3
4.5	±O.4	38.6	38.3	36.2
5.O	+O.4	42.3	40.5	40.2
	-O.5
5.5	+O.4	46.2	44.3	44.1
	-O.5
6	+O.5	50.1	48.4	48.1
	-O.6
7	0.6	59	58	52.4
	-O.7
8	+O.6	66.8	65.8	56.2
	-O.8

Application

Stairs and walkways: checkered plates are usually used for stairs or ramps in industrial areas, especially in rainy and snowy weather, or when there are liquids such as oil and water attached, which help reduce the possibility of sliding on the metal and increase friction To improve the safety of passing by.

Vehicles and trailers: Most pickup truck owners can attest to how often they get in and out of their trucks. As a result, checker plates are often used as critical sections on bumpers, truck beds, or trailers to help reduce slippage when stepping on the vehicle, while also providing traction for pulling or pushing material on or off the truck.

request a quote

Complete control over the product enables us to ensure Customers receive the highest quality prices and services. we Take pride in everything we do to serve our customers.
