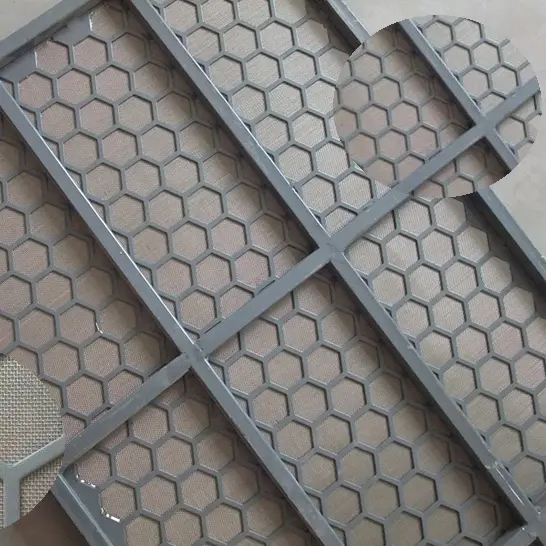

High filtration strength stainless steel composite mesh petroleum vibrating screen

High filtration strength stainless steel composite mesh petroleum vibrating screen

Short Description:

1. It has a multi-layer sand control filter device and advanced sand control performance, which can well block sand in the underground layer;
2. The pore size of the screen is uniform, and the permeability and anti-blocking performance are particularly high;
3. The oil filtering area is larger, which reduces the flow resistance and increases the oil yield;
4. The screen is made of stainless steel and has excellent corrosion resistance. It can resist acid, alkali and salt corrosion and meet the special requirements of oil wells;

FOB Price: US $0.5 - 9,999 / Piece

Min.Order Quantity: 100 Piece/Pieces

Supply Ability: 10000 Piece/Pieces per Month

High Filtration Strength Stainless Steel Composite Mesh Petroleum Vibrating Screen

Features

Flat vibrating screen

1. The mesh numbers of each layer of stainless steel mesh in the flat vibrating screen are different. Accurate and reasonable matching can make the screening effect more detailed. The mesh numbers of the stainless steel mesh and the punching shape and opening rate of the metal lining plate are different. size, and strive to obtain the largest effective filtration area while ensuring the intensity of use.
2. The stainless steel screen and the metal lining are tightly bonded into one, which enhances the strength of the entire flat vibrating screen and prolongs its use time.
3. The mesh of the metal lining plate divides the stainless steel screen into multiple independent small mesh surfaces, which can prevent excessive expansion of local damage. At the same time, it is equipped with a special rubber match to repair the damaged mesh surface, which can save time and reduce usage costs.

Wave vibrating screen

Features are as follows:
1. The wave vibrating screen has a large effective filtering area and a high drilling fluid processing capacity.
2. The mesh numbers of each layer of stainless steel mesh in the wave vibrating screen are different, and accurate and reasonable matching can make the screening effect more detailed.
3. The stainless steel screen is wavy and tightly bonded with the metal lining. The effective filtering area of the wave vibrating screen reaches 125% to 150% of that of the flat vibrating screen of the same size, greatly increasing the processing capacity.

Composite vibrating screen

Composite vibrating screen is the most commonly used vibrating screen in the early stages of drilling. Its structure and characteristics are as follows:
1. 2 to 3 layers of stainless steel screens are tightly bonded into one body without metal lining.
2. Installed on the vibrating screen by hooking without metal adhesive, the effective filtering area is large.
3. The wire diameter of the bottom stainless steel screen of the composite vibrating screen is relatively thick. It not only plays a screening role with the upper stainless steel screen, but also plays a supporting role, extending the use time of the composite vibrating screen.
4. The effective filtering area of the composite vibrating screen is larger than that of the flat vibrating screen, and the price is lower, but its life is relatively short. Different vibrating screens need to be selected according to specific drilling operating conditions.

Application

The oil drilling fluid vibrating screen is a metal mesh structural element used for screening and filtration. It is widely used in screening, filtration, dehydration, desliming and other operations in many industries. It has high strength, rigidity and load-bearing capacity, and can be made into rigid screening and filtering devices of various shapes. Easy to leak, wear-resistant and corrosion-resistant. The cross section of the mesh is trapezoidal, with the gap narrow at the top and wide at the bottom. It is a newly developed product in the wire mesh industry. There are low carbon steel wire, high manganese steel wire and stainless steel wire.
