Many Types Stainless Steel Anti-slip Effect Pattern Plate

Many Types Stainless Steel Anti-slip Effect Pattern Plate

Short Description:

Anti-skid pattern board is a kind of board with anti-skid function. It is usually used in places such as floors, stairs, ramps, decks and other places that need to be anti-skid. Its surface has patterns of different shapes, which can increase friction and prevent people and objects from slipping.
The advantages of anti-skid pattern plates are good anti-skid performance, wear resistance, corrosion resistance, and easy cleaning. At the same time, its pattern designs are diverse, and different patterns can be selected according to different places and needs, which is beautiful and practical.

FOB Price: US $0.5 - 9,999 / Piece
Min.Order Quantity: 100 Piece/Pieces
Supply Ability: 10000 Piece/Pieces per Month

Many Types Stainless Steel Anti-Slip Effect Pattern Plate

Diamond Plate Theoretical Weight Table(mm)
Basic thickness	Basic thickness tolerance	Theoretical quality(kg/m²)
		Diamond	Lentils	Round bean
2.5	±0.3	21.6	21.3	21.1
3.O	±O.3	25.6	24.4	24.3
3.5	土0.3	29.5	28.4	28.3
4.O	±O.4	33.4	32.4	32.3
4.5	±O.4	38.6	38.3	36.2
5.O	+O.4	42.3	40.5	40.2
	-O.5
5.5	+O.4	46.2	44.3	44.1
	-O.5
6	+O.5	50.1	48.4	48.1
	-O.6
7	0.6	59	58	52.4
	-O.7
8	+O.6	66.8	65.8	56.2
	-O.8

Checkered plate is a steel plate with patterns on its surface.

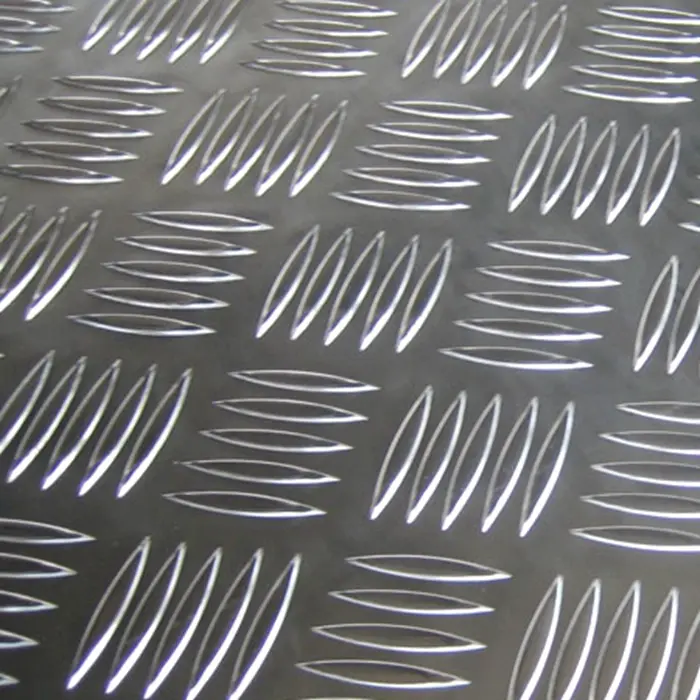

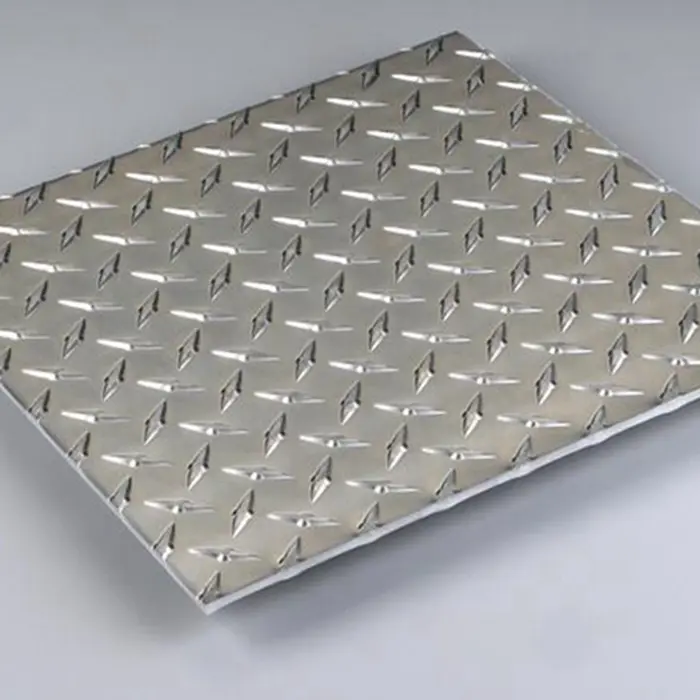

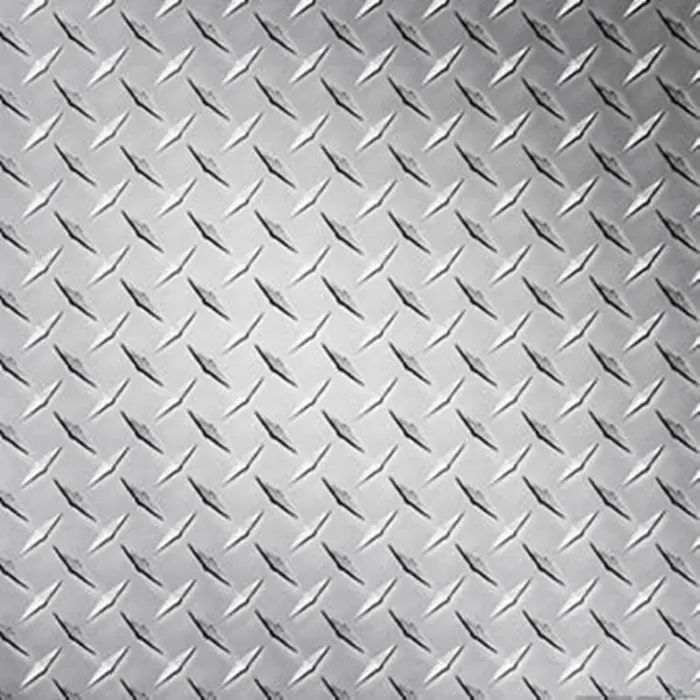

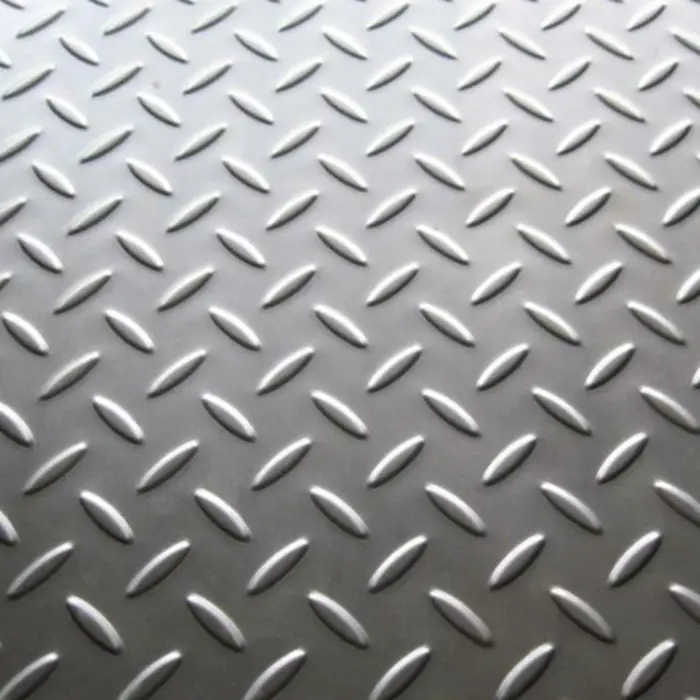

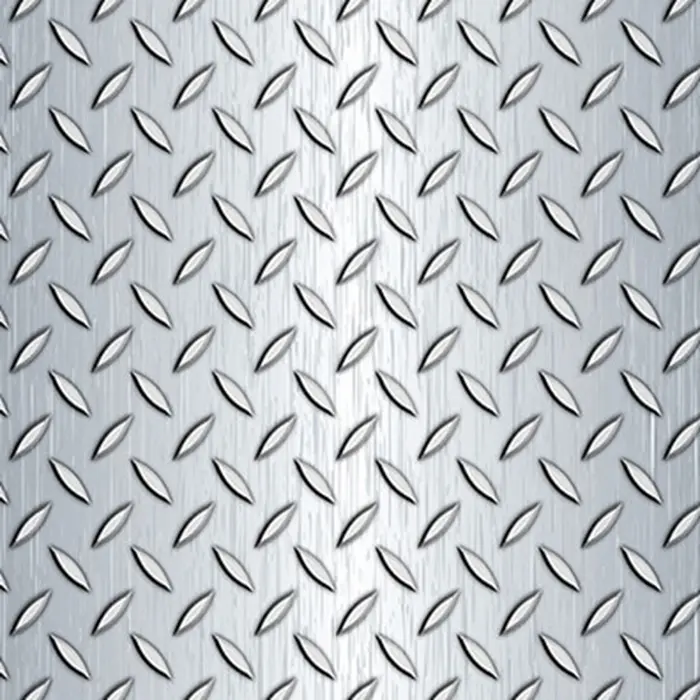

There are a variety of patterns: lentils, diamonds, round beans, oblate mixed shapes, and lentils are the most common in the market.

The checkered plate has the advantages of beautiful appearance, convenient installation, non-slip, strong wear resistance, enhanced performance, and steel saving.
Generally speaking, the quality of the pattern plate is mainly reflected in the flowering rate of the pattern, the height of the pattern, and the pattern of the height difference.
The thickness range commonly used in the market is 2.0-8mm, and the common width is 1250 and 1500mm.
Checkered plates are widely used in transportation, construction, decoration, floor around equipment, machinery, shipbuilding and other fields.

Application

Stairs and walkways: checkered plates are usually used for stairs or ramps in industrial areas, especially in rainy and snowy weather, or when there are liquids such as oil and water attached, which help reduce the possibility of sliding on the metal and increase friction To improve the safety of passing by.

Vehicles and trailers: Most pickup truck owners can attest to how often they get in and out of their trucks. As a result, checker plates are often used as critical sections on bumpers, truck beds, or trailers to help reduce slippage when stepping on the vehicle, while also providing traction for pulling or pushing material on or off the truck.
