ODM Embossed Diamond Plate Anti Skid Plate For Stair Steps

ODM Embossed Diamond Plate Anti Skid Plate For Stair Steps

Short Description:

Widely used in a variety of architectural and engineering structures,such as
1.) metal constructions such as buildings,bridges,ships;
2.) transmission tower, reaction tower;
3.) lifting transportation machinery;
4.) industrial furnace;boilers
5.) container frame, warehouse goods shelves, etc

ODM Embossed Diamond Plate Anti Skid Plate For Stair Steps

Product information

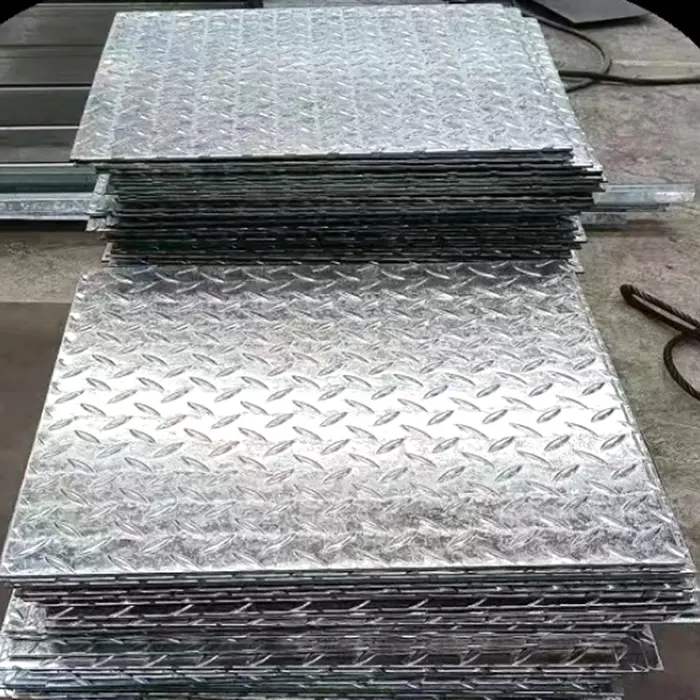

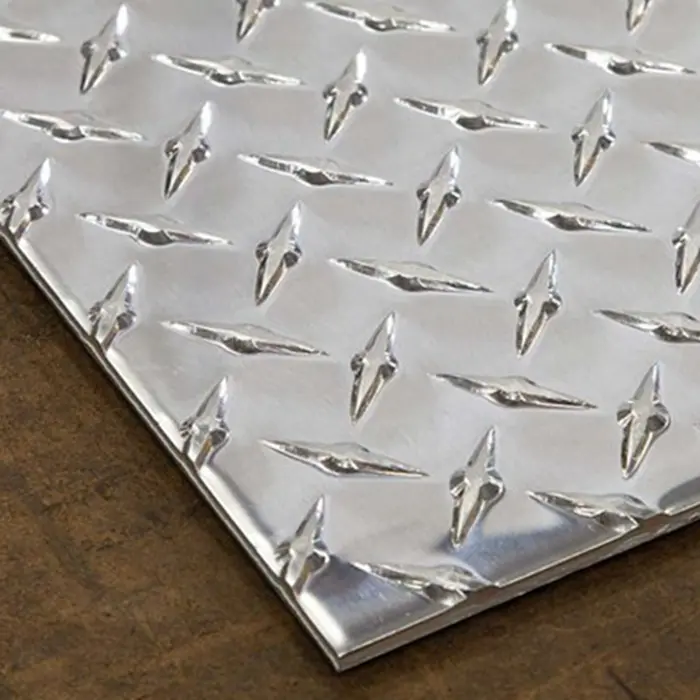

The steel plate with a pattern on the surface is called a checkered plate or diamond plate, and its pattern is a mixed shape of lenticular, rhombus, round bean, and oblate. The lenticular shape is the most common in the market.

Features

The checkered plate has many advantages such as beautiful appearance, anti-skid, enhanced performance, and steel saving.

It is widely used in transportation, construction, decoration, floor around equipment, machinery, shipbuilding and other fields.

Generally speaking, the user does not have high requirements on the mechanical properties and mechanical properties of the checkered plate, so the quality of the checkered plate is mainly manifested in the flowering rate of the pattern, the height of the pattern, and the height difference of the pattern.

The commonly used thicknesses on the market range from 2.0-8mm, and the common widths are 1250 and 1500mm.

Diamond Plate Theoretical Weight Table(mm)
Basic thickness	Basic thickness tolerance	Theoretical quality(kg/m²)
		Diamond	Lentils	Round bean
2.5	±0.3	21.6	21.3	21.1
3.O	±O.3	25.6	24.4	24.3
3.5	土0.3	29.5	28.4	28.3
4.O	±O.4	33.4	32.4	32.3
4.5	±O.4	38.6	38.3	36.2
5.O	+O.4	42.3	40.5	40.2
	-O.5
5.5	+O.4	46.2	44.3	44.1
	-O.5
6	+O.5	50.1	48.4	48.1
	-O.6
7	0.6	59	58	52.4
	-O.7
8	+O.6	66.8	65.8	56.2
	-O.8

Application

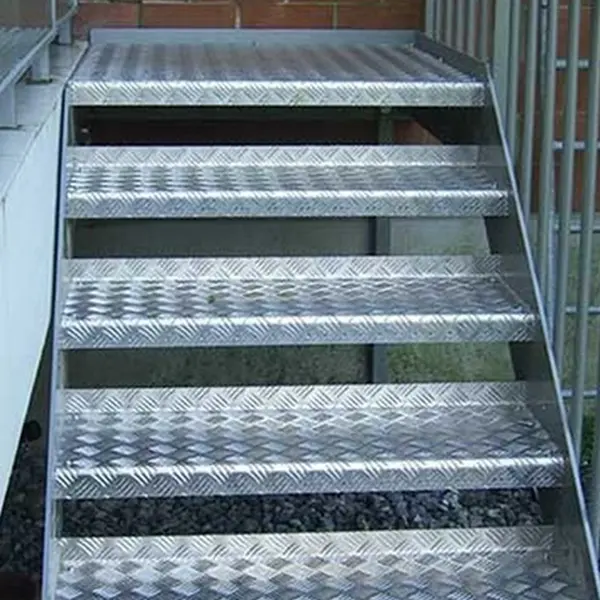

Stairs and walkways: checkered plates are usually used for stairs or ramps in industrial areas, especially in rainy and snowy weather, or when there are liquids such as oil and water attached, which help reduce the possibility of sliding on the metal and increase friction To improve the safety of passing by.

Vehicles and trailers: Most pickup truck owners can attest to how often they get in and out of their trucks. As a result, checker plates are often used as critical sections on bumpers, truck beds, or trailers to help reduce slippage when stepping on the vehicle, while also providing traction for pulling or pushing material on or off the truck.
