Strong wear resistance wide range of applications metal anti-skid pattern plate

Strong wear resistance wide range of applications metal anti-skid pattern plate

Short Description:

The point of diamond boards is to provide traction to reduce the risk of slipping. In industrial settings, non-slip diamond panels are used on stairs, walkways, work platforms, walkways and ramps to increase safety. Aluminum pedals are popular in outdoor settings.

Anti-skid pattern board is a kind of board with anti-skid function. It is usually used on indoor and outdoor floors, stairs, steps, runways and other places. Its surface is covered with special patterns, which can increase the friction when people walk on it and prevent slipping or falling.
The materials of anti-skid pattern plates usually include quartz sand, aluminum alloy, rubber, polyurethane, etc. Different materials and patterns can be selected according to different use occasions and needs.

Size: Customized
Pack: Wooden Box
Sample: Available

Strong Wear Resistance Wide Range Of Applications Metal Anti-Skid Pattern Plate

Diamond Plate Theoretical Weight Table(mm)
Basic thickness	Basic thickness tolerance	Theoretical quality(kg/m²)
		Diamond	Lentils	Round bean
2.5	±0.3	21.6	21.3	21.1
3.O	±O.3	25.6	24.4	24.3
3.5	土0.3	29.5	28.4	28.3
4.O	±O.4	33.4	32.4	32.3
4.5	±O.4	38.6	38.3	36.2
5.O	+O.4	42.3	40.5	40.2
	-O.5
5.5	+O.4	46.2	44.3	44.1
	-O.5
6	+O.5	50.1	48.4	48.1
	-O.6
7	0.6	59	58	52.4
	-O.7
8	+O.6	66.8	65.8	56.2
	-O.8

Checkered plate is a steel plate with patterns on its surface.

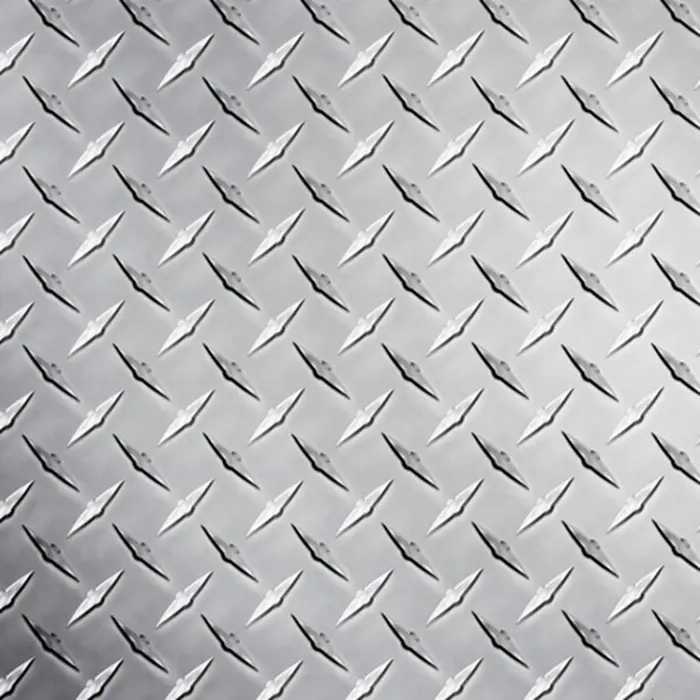

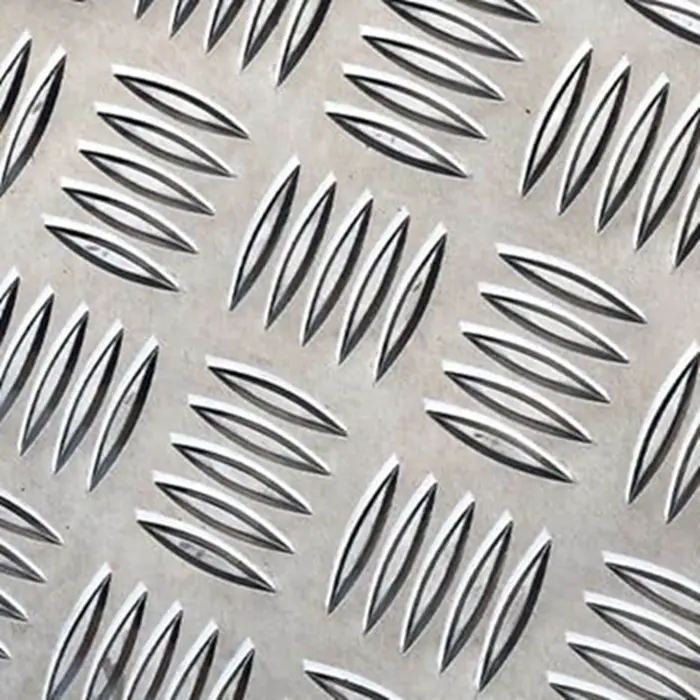

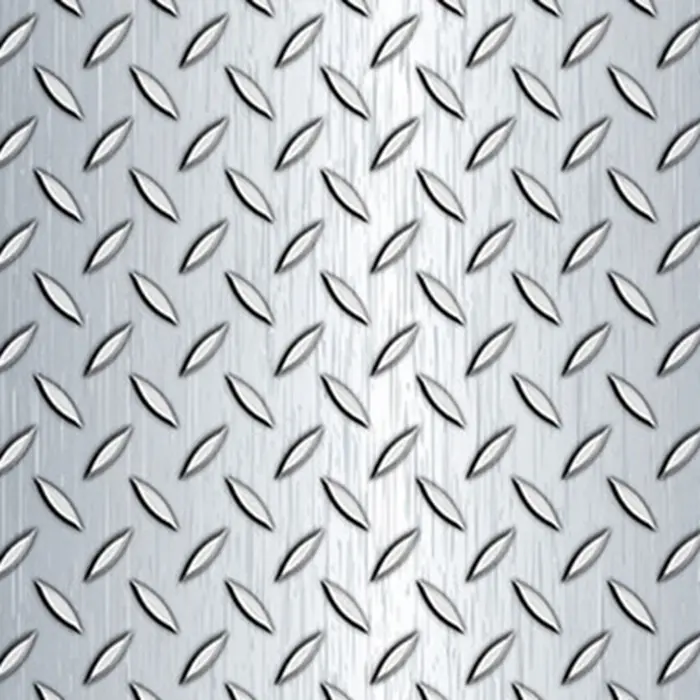

There are a variety of patterns: lentils, diamonds, round beans, oblate mixed shapes, and lentils are the most common in the market.

The checkered plate has the advantages of beautiful appearance, convenient installation, non-slip, strong wear resistance, enhanced performance, and steel saving.
Generally speaking, the quality of the pattern plate is mainly reflected in the flowering rate of the pattern, the height of the pattern, and the pattern of the height difference.
The thickness range commonly used in the market is 2.0-8mm, and the common width is 1250 and 1500mm.
Checkered plates are widely used in transportation, construction, decoration, floor around equipment, machinery, shipbuilding and other fields.

Application

Stairs and walkways: checkered plates are usually used for stairs or ramps in industrial areas, especially in rainy and snowy weather, or when there are liquids such as oil and water attached, which help reduce the possibility of sliding on the metal and increase friction To improve the safety of passing by.

Vehicles and trailers: Most pickup truck owners can attest to how often they get in and out of their trucks. As a result, checker plates are often used as critical sections on bumpers, truck beds, or trailers to help reduce slippage when stepping on the vehicle, while also providing traction for pulling or pushing material on or off the truck.
